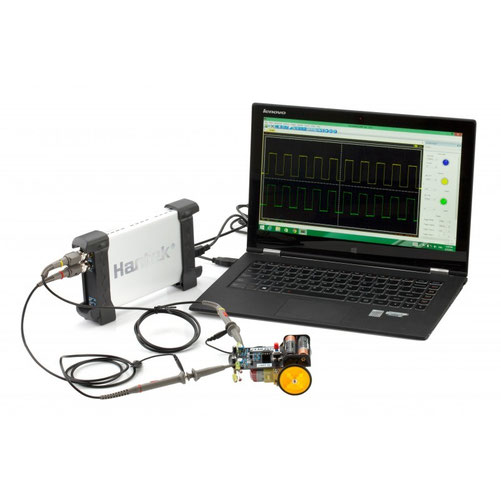

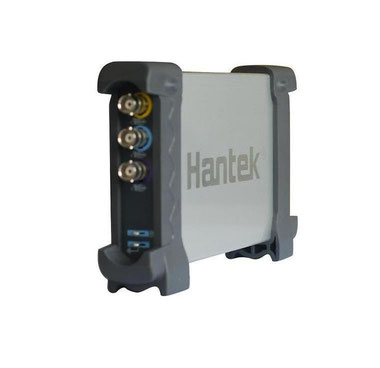

OSCILOSCOPIO HANTEK 6022BE, INTERFAZ
Interfaz Osciloscopio, de fácil manejo y 2 canales.
Precio: 1300 Bs.
| Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument. | |
| USB2.0 interface, no external power source required, easy to use. | |
| Be suitable for notebook computer, product line maintenance,be used easily on business. | |
| Dimensions (mm):205(L) x120(W) x35(H), be carried easily. | |
| High performance, 48MS/s real-time sampling, 20MHz Bandwidth, | |
| Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA. | |
| 23 measurement functions, PASS/FAIL Check, be suitable for technical application> | |
| Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot. | |
| Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. | |
| FFT | |
| One computer can connect many DSO, extend channel easily. | |
| LabviewVBVC Second Design instance. |
| Hardware Specification | |
| Channel | 2 Channels |
| Bandwidth | 20MHz |
| Input Impandence | 1MΩ 25pF |
| Max. Sample rate | 48MS/s |
| Vertical resolution | 8Bit |
| Gain range | 20mV-5V, 8Steps |
| DC accuracy | ±3% |
| Timebase range | 1ns-9000s, 39 Steps |
| Vertical adjustable | Yes |
| Input protection | Diode clamping |
| X-Y | Yes |
| Trigger Mode | Auto, Normal and Single |
| Trigger Slope | +/- |
| Trigger level adjustable | Yes |
| Trigger Type | Rising edge, falling edge |
| Trigger Source | CH1, CH2 |
| Pre/Post trigger | 0-100% |
| Sampling selection | Yes |
| Waveform Display | port/line, waveform average, persistence, intensity |
| Network | Open/Close |
| Vertical mode | CH1, CH2, Dual, ADD |
| Cursor measurement | Yes |
| Math | FFT, addition, subtraction, multiplication, division. |
| Cursor | Frequency, Voltage |
| Accessories | S/W CD, probes, manual, USB cord |
